SPECIFICATIONS

Brand Name: NoEnName_Null

Model Number: APP32RGB

Origin: Mainland China

Subject: PHYSICS

Product Type:32 Layer Full Color RGB Music Light

Bead type:5MM RGB tricolor light

Number of beads:approx. 550

Product weight:450G (without shell)

Product Size:Approx. 100*100*800MM (normal version)

Animation effect:53 kinds of animation effect

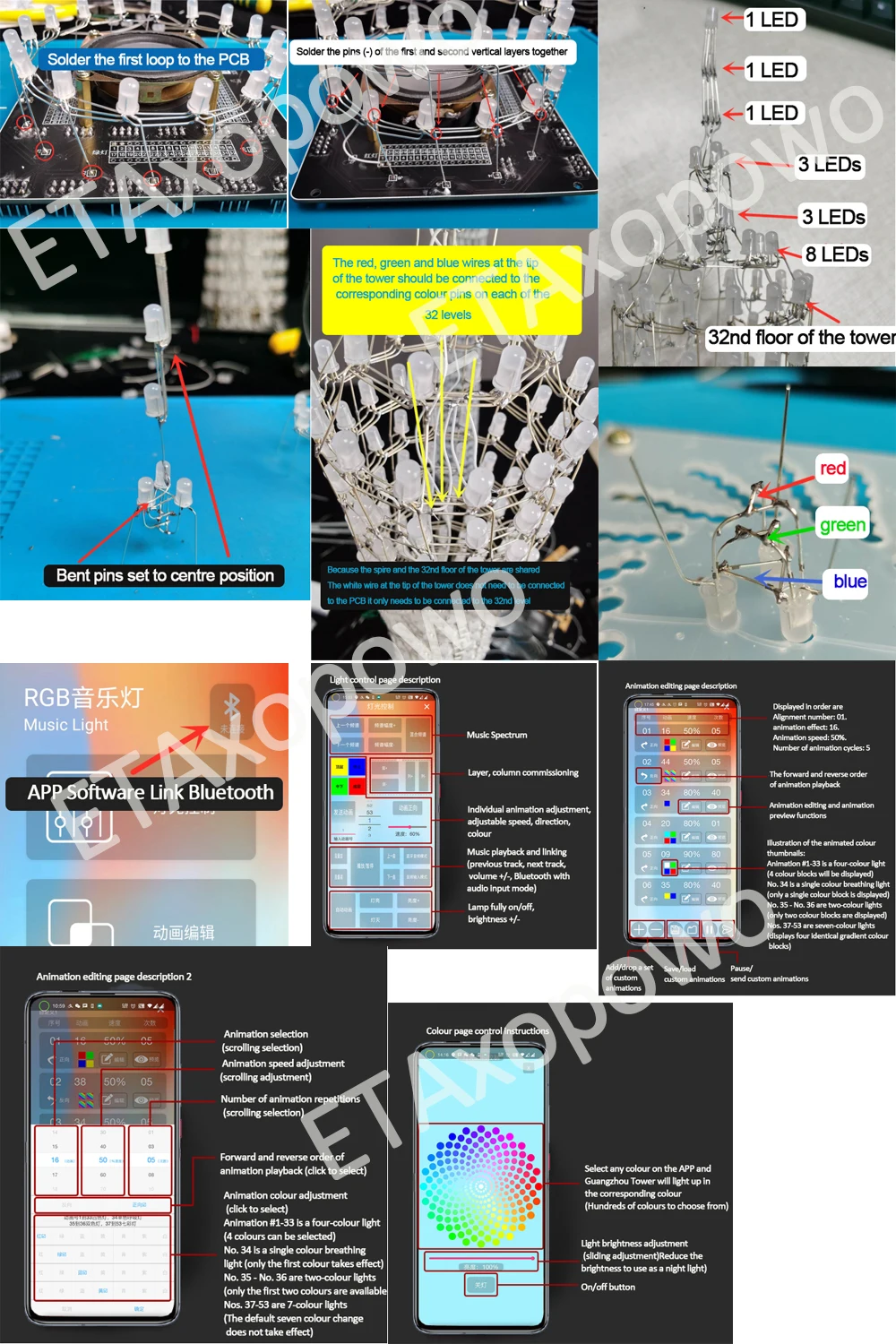

Animation editing: APP custom animation effects

Offline animation:Loop animation

Audio cable: 3.5MM audio cable

LED driver: Microcontroller controlled 74HC573, ULN2803 chip driver

LED welding: with special welding template, customers can weld and assemble LED and tower body independently.

Programme difficulty:★★★★★ (SMD components welding and RGB LEDs are relatively more difficult to weld)

Speaker type: 3W/4Q speaker

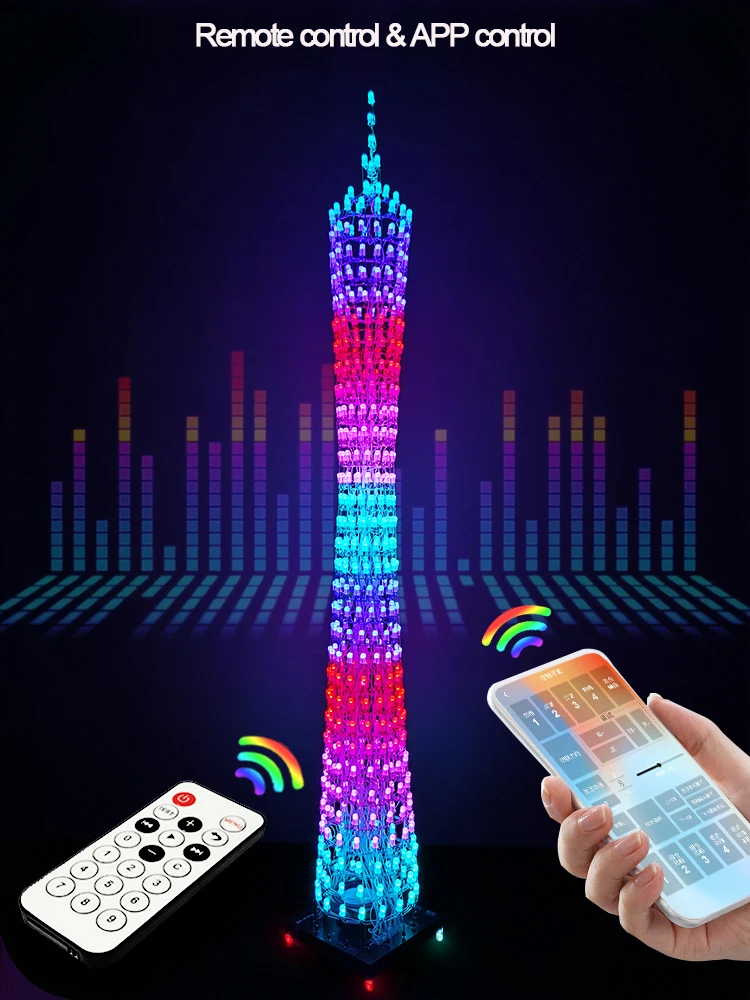

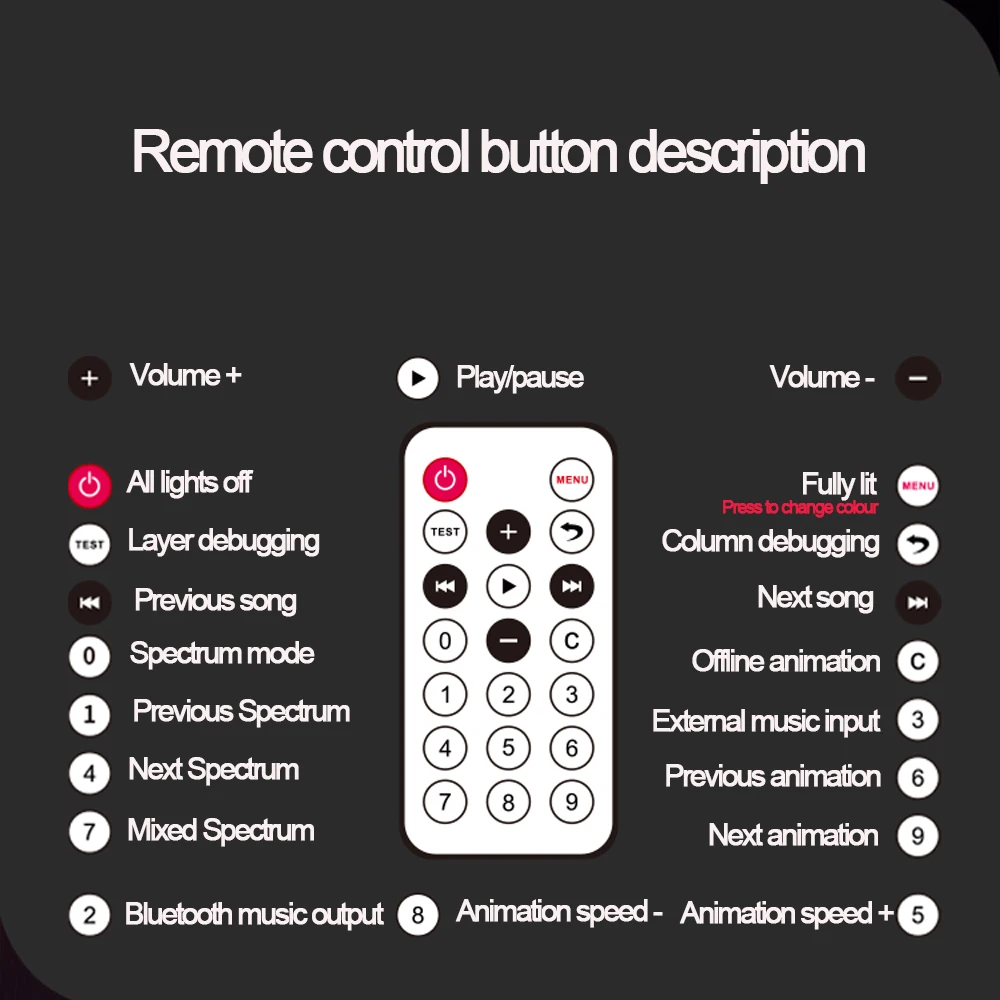

Control mode: Infrared remote control, Android APP control

Connection type: Bluetooth connection, 3.5MM audio interface

Audio input needs to be switched to audio cable input mode by IR remote control or APP, and then plugged into

3.5MM audio cable, otherwise it can not enter the audio cable input mode

Power supply parameters: DC5V/3A (power adapter not included)

This kit is difficult to weld, please make sure you have enough experience to be able to solve the

problems encountered during the welding process before purchasing.

Not recommended for beginners, thank you!

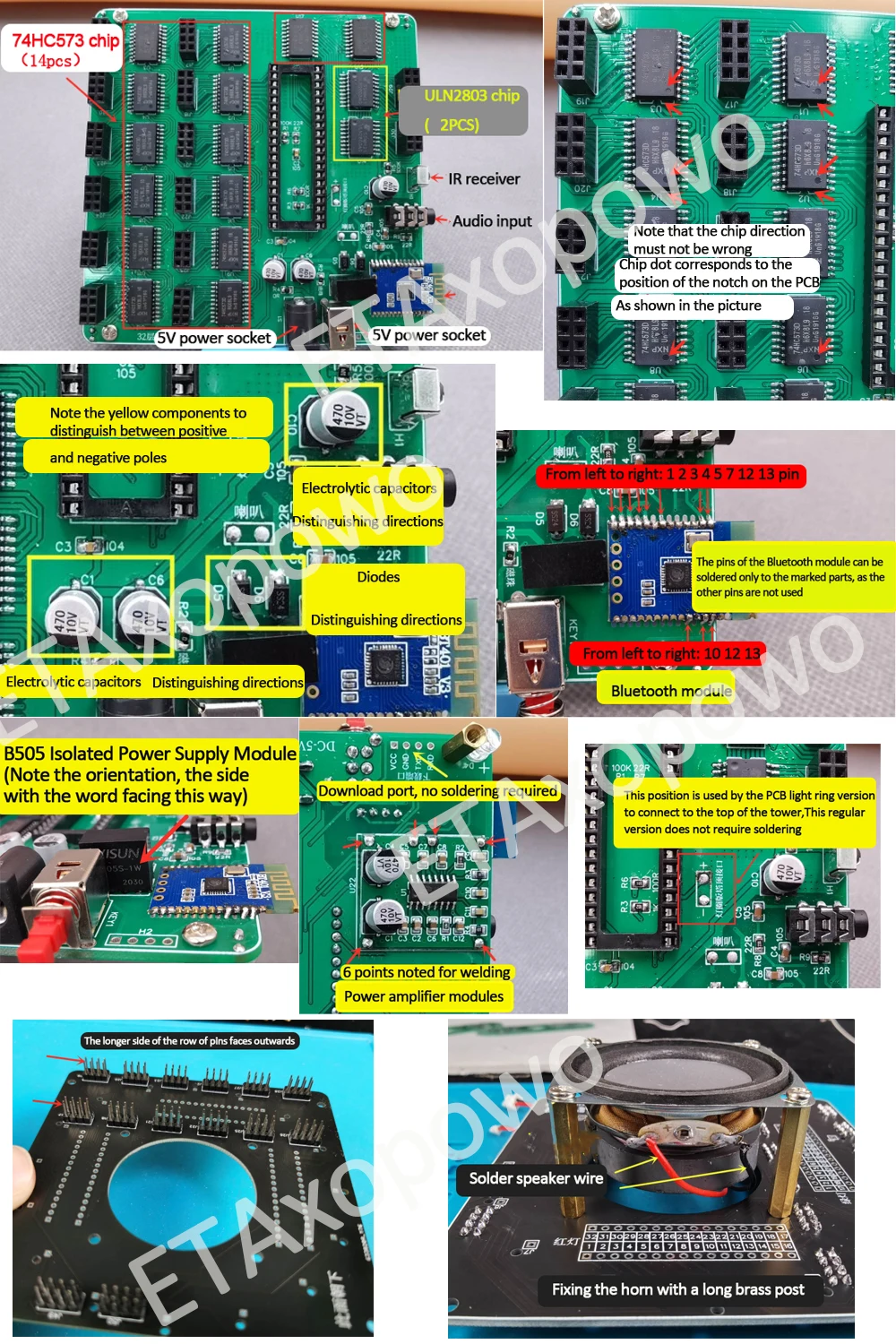

Soldering Tutorials

1. Soldering PCB
